10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut

Name: 10mm 5V 2Phase Stepper Motor with M3 Screw and Copper Nut
Brand: Vic-Tech
Price: 3 USD

Quality 10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut for sale

Place of Origin : Jiangsu, China

Brand Name : Vic-Tech

Model Number : SM10-10M3-T

Certification : RoHS

MOQ : 1

Price : $3-5

Motor diameter : 10mm

Phase : 2

Motor type : Permanent Magnet

Current per phase : 500 mA

Voltage : 5V

Resistance : 10Ω±7%

Exciting method : 2-2 Phase exciting

Exciting mode : Bipolar

Screw type : M3P0.5

Step angle : 18°

Steps per turn : 20

Starting frequency : 1000 PPS min.

Slewing frequency : 1500 PPS min.

Pull in torque : 5gf-cm min.

Pull out torque : 6gf-cm min.

Contact Now

Product Overview

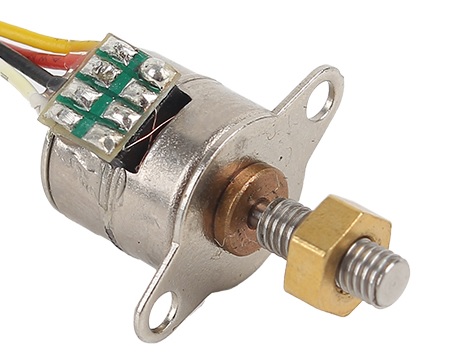

10mm mini PM MOTOR 5V Micro Electric Motor 2 phase stepper motor M3 lead screw with copper nut

SM10-10M3 is a precision PM linear stepping motor, the motor diameter is 10mm, the screw M3P0.5, the nut can be customized
according to the customer's installation requirements, used in medical equipment, printers, scanners, automotive instruments,
security systems, electronic locks Wait.
Mini body, 3N thrust, 10mm stroke, 0.067mm displacement per step, can be applied to install small equipment due to its small size
The input part of the motor is a connecting wire, but it can be changed into a connecting wire needle, FPC and other forms
according to customer needs.
The length of the motor screw can be customized according to customer needs, if you are interested in our motor, you can contact
me at any time Corresponding output devices, such as worm and screw, can be customized according to customer needs The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week. Due to its small size, high precision and easy control, this miniature stepping motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

FEATURES AT A GLANCE

10mm 5V 2-Phase Stepper Motor with M3 Screw and Copper Nut

SM10-10M3-T

This motor is a 10mm stepper motor, the step angle is 18°, 20 steps per turn, the motor is connected with 2 phases and 4 wires, and the length of the connecting line can be customized according to customer needs. The conventional screw of the motor is M3P0.5mm, and the length of the screw can be Customized according to customer needs

Successful Project

PRODUCT NAME	10 MM MICRO STEPPER MOTOR
MODEL	SM10-10M3-T
RATED VOLTAGE	5VDC
CURRENT PER PHASE	500mA/PHASES
Resistance	10±7%Ω /PHASES
NO.OF PHASES	2 PHASES
STEP ANGLE	18°
MAX. STARTING FREQUENCY	1000 PPS min. (AT 5 V DC)
MAX. SLEWING FREQUENCY	1500 PPS min. (AT 5 V DC)
PULL IN TORQUE	5gf-cm min. (AT 500PPS , 5V DC)
PULL OUT TORQUE	6gf-cm min. (AT 500 PPS , 5V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	100V AC FOR ONE SECOND
INSULATION RESISTENCE	1MΩ (DC 100V)
OPERATING TEMPERATURE RANGE	-30~+70 ℃
OEM & ODM SERVICE	AVAILABLE
